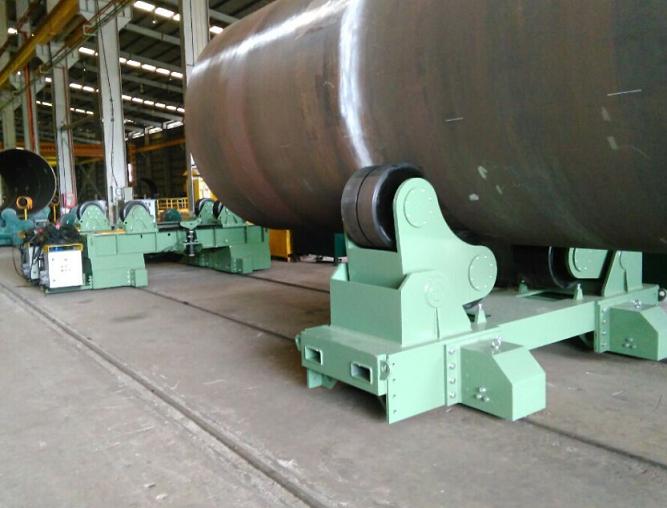

Motorized Travel Self Aligned Pipe Rotators for Welding , 250ton

Brief introduction:

• 4 wheels hold up the weldments maximumly decrease the circular job deformation.

• Self aligned structure is able to suitable for different diameter job automatically.

• Base with motorized trolley, travel on axial direction for various length job.

Feature of self aligned welding rotator:

• Self aligned welding rotator mainly consist of power unit, idler unit, electric control box and hand control panel.

• There is 20% overweight setted for rotator loading.

• Each motors and reducers have cover, careful design, ensure the safety.

• All the parts using well-known brands in China or other countries. Quality is reliable.

• Self aligned welding rotatoris used for the inner/outer circumferential and longitudinal seam welding.


Main technical parameters:

Self aligned welding rotator description:

• The series self aligned welding rotator absorb advantages of similar products at home and abroad.

• Designed and manufactured by Ronniewell according to the operation requirements of actual user requirement;

• Produciton is comply with mechanical standard JB/T 9187-1999.

• Self aligned welding rotatoris specially adopted to weld circular metal weldment.

• Self aligned welding rotator can be aligned by itself according to the size of the weldment.

• It is controlled with AC frequency converter.

• It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range.

• In accordance with the customers requirement,customize design & production is acceptable.

Delivery:



Exhibition:



Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.


Name of the machine:
tube turning rolls, fit up rotator, self-aligned welding rotator, self-aligning welding rotator, self adjustable welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional welding rotator, bolt adjustable welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station,welding rotator, pipe welding rotator, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls, pipe turning rolls

Ronniewell established since 2007 .We have built our expertise through years of experience. This enables us to produce equipment suitable for almost the entire spectrum of industrial welding and cutting needs.

Ronniewell's range of activities includes consultation, design, manufacture, install and provision of services mainly to Oil & Gas Installations, Constructors and Heavy Engineering and Steel Structure Fabricators.

Comprehensive range for sale:

• CNC flame/plasma cutting machine;
• Welding Rotators, Welding Turning Rolls;
• Welding Positioners & Welding Head and tail stocks;
• Welding Column & Boom Manipulators;
• Horizontal turntables;
• Welding Fit Up rotator & Growing Lines;
• Specialist handling welding rotators & welding positioners for Riser Lines, Pipe Shops, Pile Racks, Double Jointing, and Wind tower Production solutions.
• H-beam production lines;
• Edge milling machine.

Our vision is based on a long term strategy. This means that we are increasing our design and production capacity and we are strengthening our sales and after sales team to be able to serve you in the best possible way.
