Self-alignment Vessel Turning Rolls / Tube Rotator for welding
Quick Detail:
Self Aligning Rotator construction such that the trunnion brackets
which support the wheels automatically align themselves when
changing from one diameter to another, no manual adjustment
whatsoever is required.
Description:
Each section supports the vessel / Job on four points ensuring
better traction, and on machines of 3 T to 500 T capacity and
upwards 50 metric tonnes all four wheels of the drive section are
positively driven. This four point suspension is an added advantage
when on handling thin walled vessels.
Applications:
This bolt adjustable welding rotator is produced according to MMBEI
Standard ZBJ33003-1990. Self-design and manufacture combined the
advantages of oversea competitors and requirements of domestic and
overseas customers. It is suitable for automatic welding of
circular seam cylinder, with advantages of practical, reliable,
stable and easily operates etc. It is widely used in the range of
job cutting, polishing, assemble etc.. It is one of ideal
equipments of improve automaticity and efficiency.
Specifications:
If you do not see anything that matches your requirements please
contact us to discuss your needs further.
Type | HGZ-5 | HGZ-10 | HGZ-20 | HGZ-40 | HGZ-60 | HGZ-80 | HGZ-100 |
Payload (T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 |
Suitable size of job(mm) | Minφ | 250 | 320 | 500 | 600 | 750 | 850 | 1000 |
Maxφ | 2300 | 2800 | 3500 | 4200 | 4800 | 5000 | 5500 |
Roller Specification(mm) | PU wheel
Diameter(mm) | 250 | 300 | 350 | 400 | 450 | 500 | 500 |
PU wheel
Width(mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 |
Metal wheel
Diameter (mm) | 240 | 290 | 340 | 390 | 440 | 490 | 490 |
Metal wheel
Width (mm) | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
Roller speed m/h | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 |
Power of motor (KW) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 |
Speed adjusting way | VFD |
Competitive Advantage:

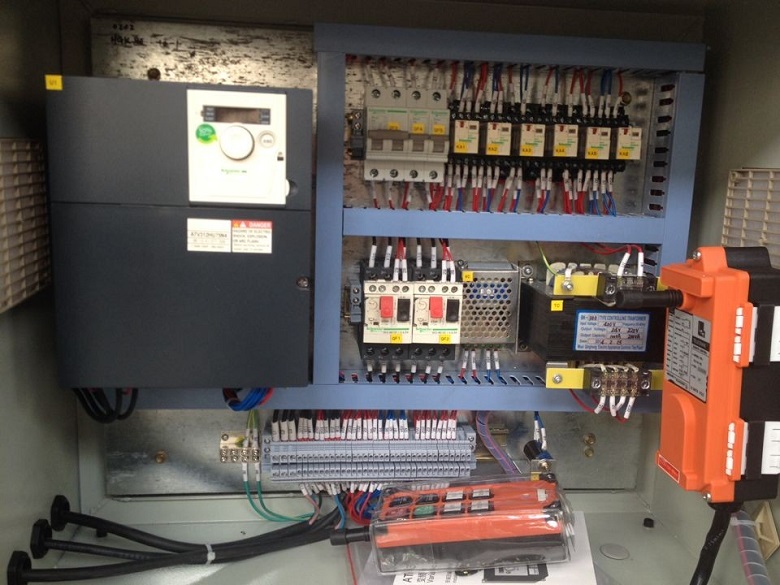

● Inverter and Main electric elements are Siemens/Schneider or
equal brand.
● Motor is UK brand Invertek.
● VFD rotary speed control, improving the reliability of operation.
● Steel or PU roller which can ensure a long time using (at least 2
years).
● This welding rotator with lubrication system.
●This welding rotator accept testing before delivery.
●This welding rotator accept special design and custom.
